Full Ceramic Deep Groove Ball Bearing CE6303-Si3N4-PEEK open 17x47x14 mm

The all-ceramic deep groove ball bearing CE-6303-Si3N4-PEEK has ceramic bearing rings and rolling elements. It therefore has outstanding properties and meets even the highest demands, its main dimensions comply with DIN 625-1.

Technical Data

Inside (mm):	17
Outside (mm):	47
Width (mm):	14
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Ceramics
Rolling Element Material:	Ceramics
Cage Material:	PEEK
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	no
Product weight:	0,0509 kg

Item number: CE-6303-Si3N4-PEEK

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 70.32

pcs

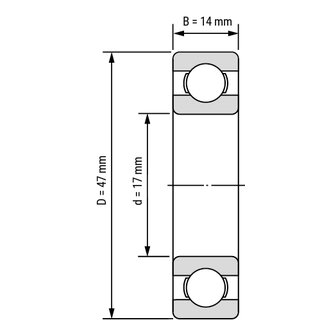

Technical Scribble

Technical Data

Inside (mm):	17
Outside (mm):	47
Width (mm):	14
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Ceramics
Rolling Element Material:	Ceramics
Cage Material:	PEEK
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	no
Product weight:	0,0509 kg

Technical Scribble

Full Ceramic Deep Groove Ball Bearing CE6303-Si3N4-PEEK open 17x47x14 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
