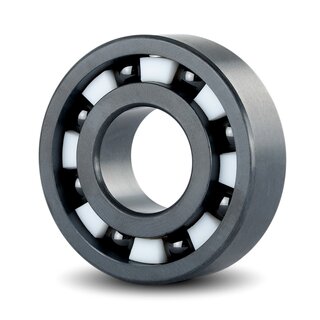

Full Ceramic Deep Groove Ball Bearing CE6206-Si3N4-PTFE open 30x62x16 mm

The all-ceramic deep groove ball bearing CE-6206-Si3N4-PTFE has ceramic bearing rings and rolling elements. It therefore has outstanding properties and meets even the highest demands, its main dimensions comply with DIN 625-1.

Technical Data

Inside (mm):	30
Outside (mm):	62
Width (mm):	16
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Ceramics
Rolling Element Material:	Ceramics
Cage Material:	PTFE
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	no
Product weight:	0,0880 kg

Item number: CE-6206-Si3N4-PTFE

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 127.34

pcs
