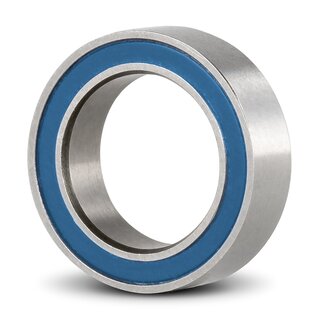

Ceramics / Hybrid Miniature Deep Groove Ball Bearing C MR83 2RS / 3x8x3 mm

The hybrid miniature ball bearing C-MR83-2RS has excellent properties due to the ceramic rolling elements. It is small and suitable for installation with limited space and on thin shafts. It can withstand extremely high speeds and has metric special dimensions.

Technical Data

Inside (mm):	3
Outside (mm):	8
Width (mm):	3
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	2RS
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Ceramics
Cage Material:	Sheet Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Product weight:	0,0007 kg

Item number: C-MR-83-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
