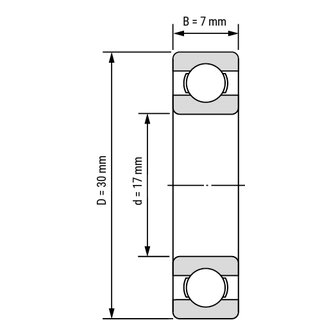

Ceramics / Hybrid Deep Groove Ball Bearing C 6903 TN open / C 61903 TN open dry 17x30x7 mm

The hybrid deep groove ball bearing C-6903-TN has excellent properties due to the ceramic rolling elements. It is narrow and can also be used in a limited space. The low weight allows very high speeds.

Technical Data

Inside (mm):	17
Outside (mm):	30
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Ceramics
Cage Material:	Plastic
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0132 kg

Item number: C-6903-TN-DRY

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 15.29

pcs

Technical Scribble

Technical Data

Inside (mm):	17
Outside (mm):	30
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Ceramics
Cage Material:	Plastic
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0132 kg
