Ceramics / Hybrid Deep Groove Ball Bearing C 6703 open / C 61703 open 17x23x4 mm

The hybrid deep groove ball bearing C-6703 has excellent properties due to the ceramic rolling elements. It is extremely narrow and can also be used with limited space. The low weight allows for utmost high speeds.

Technical Data

Inside (mm):	17
Outside (mm):	23
Width (mm):	4
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Ceramics
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0033 kg

Item number: C-6703

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 12.76

pcs

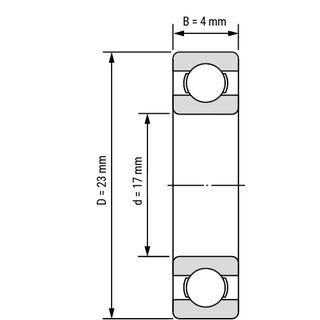

Technical Scribble

Technical Data

Inside (mm):	17
Outside (mm):	23
Width (mm):	4
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Ceramics
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0033 kg

Technical Scribble
