Drawn Cup Needle Roller Bearing with Closed End BK1012 10x14x12 mm

The needle sleeve BK1012 is a small needle bearing without inner ring and can be placed directly on the shaft, preferably a shaft end. It is suitable for absorbing high radial forces in the smallest space. Main dimensions according to DIN 618-1.

Technical Data

Inside (mm):	10
Outside (mm):	14
Width (mm):	12
Tolerance for width (mm):	0/-0,3
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0050 kg

Item number: BK1012

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 0.72

pcs

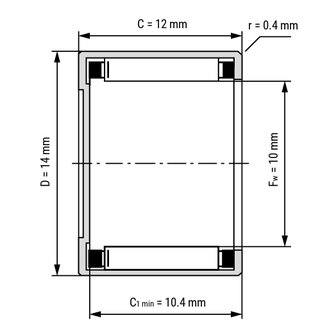

Technical Scribble

Technical Data

Inside (mm):	10
Outside (mm):	14
Width (mm):	12
Tolerance for width (mm):	0/-0,3
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0050 kg

Technical Scribble

Drawn Cup Needle Roller Bearing with Closed End BK1012 10x14x12 mm

Technical Data

Technical Scribble

Technical Data
