Drawn Cup Needle Roller Bearing with Closed End BK0808 8x12x8 mm

The needle sleeve BK0808 is a small needle bearing without inner ring and can be placed directly on the shaft, preferably a shaft end. It is suitable for absorbing high radial forces in the smallest space. Main dimensions according to DIN 618-1.

Technical Data

Inside (mm):	8
Outside (mm):	12
Width (mm):	8
Tolerance for width (mm):	0/-0,3
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0024 kg

Item number: BK0808

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 0.54

pcs

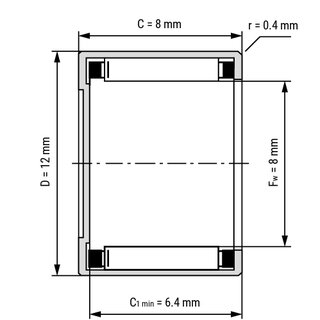

Technical Scribble
