Spindle Bearing / Precision Angular Ball Bearing B7214-E-T-P4S-UL 70x125x24 mm

The spindle bearing B7214-E-T-P4S-UL is a super precision angular ball bearing (DIN 628-1) with a contact angle of 25°. It is suitable for the use in machine tools and other applications focusing on the greatest precision.

Technical Data

Inside (mm):	70
Outside (mm):	125
Width (mm):	24
Tolerance for inside (mm):	0/-0,007
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,15
Tolerance for shaft da (mm):	0,3/-0,3
Contact Angle:	25
Rows Of Balls:	single row
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Phenolic Resin
Tolerance Class:	P4S
Lubrication:	not greased, not oiled, preserved with Quaker Ferrocote 5856 BF T1
Type of lubrication:	dry
Magnetic:	yes
Product weight:	1,1000 kg

Item number: B7214-E-T-P4S-UL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 165.62

pcs

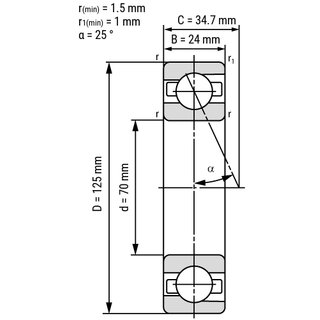

Technical Scribble

Technical Data

Inside (mm):	70
Outside (mm):	125
Width (mm):	24
Tolerance for inside (mm):	0/-0,007
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,15
Tolerance for shaft da (mm):	0,3/-0,3
Contact Angle:	25
Rows Of Balls:	single row
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Phenolic Resin
Tolerance Class:	P4S
Lubrication:	not greased, not oiled, preserved with Quaker Ferrocote 5856 BF T1
Type of lubrication:	dry
Magnetic:	yes
Product weight:	1,1000 kg
