Spindle Bearing / Precision Angular Ball Bearing B7207-E-2RSD-T-P4S-UL 35x72x17 mm

The spindle bearing B7207-E-2RSD-T-P4S-UL is a super precision angular ball bearing (DIN 628-1) with a contact angle of 25°. It is suitable for the use in machine tools and other applications focusing on the greatest precision.

Technical Data

Inside (mm):	35
Outside (mm):	72
Width (mm):	17
Tolerance for inside (mm):	0/-0,006
Tolerance for outside (mm):	0/-0,007
Tolerance for width (mm):	0/-0,12
Tolerance for shaft da (mm):	0,25/-0,25
Contact Angle:	25
Rows Of Balls:	single row
Seal:	2RSD
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Phenolic Resin
Tolerance Class:	P4S
Lubrication:	Lubcon Turmogrease Highspeed L252
Type of lubrication:	greased
Magnetic:	yes
Product weight:	0,3010 kg

Item number: B7207-E-2RSD-T-P4S-UL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 62.39

pcs

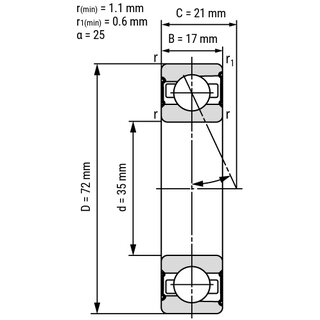

Technical Scribble
