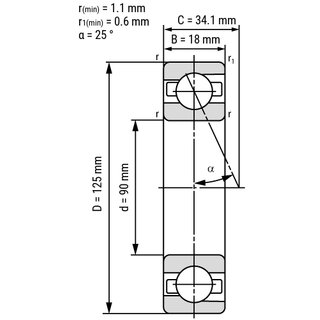

Spindle Bearing / Precision Angular Ball Bearing B71918-E-T-P4S-UL 90x125x18 mm

The spindle bearing B71918-E-T-P4S-UL is a super precision angular ball bearing (DIN 628-1) with a contact angle of 25°. It is suitable for the use in machine tools and other applications focusing on the greatest precision.

Technical Data

Inside (mm):	90
Outside (mm):	125
Width (mm):	18
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,2
Tolerance for shaft da (mm):	0,35/-0,35
Contact Angle:	25
Rows Of Balls:	single row
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Phenolic Resin
Tolerance Class:	P4S
Lubrication:	not greased, not oiled, preserved with Quaker Ferrocote 5856 BF T1
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,5500 kg

Item number: B71918-E-T-P4S-UL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 251.55

pcs
