Axial Needle Roller Bearing AXW50 50x73x4.2 mm

The axial needle roller bearing AXW50 is suitable for high axial loads in the smallest space. With the aid of the centering collar of the thrust washer, it can be easily positioned. Main dimensions according to DIN 5405-2.

Technical Data

Inside (mm):	50
Outside (mm):	73
Width (mm):	4.2
Tolerance for inside (mm):	0,300/0,050
Tolerance for width (mm):	0/-0,2
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0490 kg

Item number: AXW50

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.84

pcs

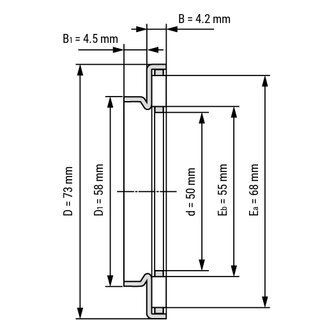

Technical Scribble
