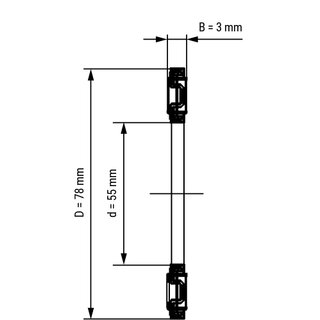

Technical Scribble
Axial Needle Roller and Cage Assembly AXK5578 55x78x3 mm
The axial needle roller bearing AXK5578 is suitable for high axial loads in the smallest space. It can be combined with a thrust washer. Main dimensions according to DIN 5405-2.
Technical Data
| Inside (mm): | 55 |
| Outside (mm): | 78 |
| Width (mm): | 3 |
| Tolerance for inside (mm): | 0,00006/0,00036 |
| Tolerance for outside (mm): | -0,00045/-0,00015 |
| Tolerance for width (mm): | -0,00001/0 |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0240 kg |
Item number: AXK5578
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 1.62
pcs
Technical Scribble
Technical Data
| Inside (mm): | 55 |
| Outside (mm): | 78 |
| Width (mm): | 3 |
| Tolerance for inside (mm): | 0,00006/0,00036 |
| Tolerance for outside (mm): | -0,00045/-0,00015 |
| Tolerance for width (mm): | -0,00001/0 |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0240 kg |
