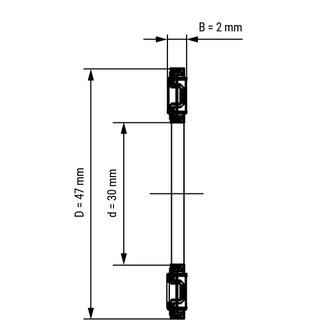

Axial Needle Roller and Cage Assembly AXK3047 30x47x2 mm
The axial needle roller bearing AXK3047 is suitable for high axial loads in the smallest space. It can be combined with a thrust washer. Main dimensions according to DIN 5405-2.
Technical Data
| Inside (mm): | 30 |
| Outside (mm): | 47 |
| Width (mm): | 2 |
| Tolerance for inside (mm): | 0,00004/0,00025 |
| Tolerance for outside (mm): | -0,00038/-0,00013 |
| Tolerance for width (mm): | -0,00001/0 |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0071 kg |
Item number: AXK3047
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 0.62
pcs
Technical Scribble
Technical Data
| Inside (mm): | 30 |
| Outside (mm): | 47 |
| Width (mm): | 2 |
| Tolerance for inside (mm): | 0,00004/0,00025 |
| Tolerance for outside (mm): | -0,00038/-0,00013 |
| Tolerance for width (mm): | -0,00001/0 |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0071 kg |
