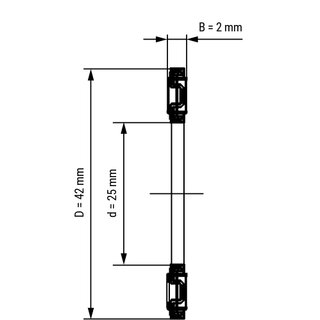

Axial Needle Roller and Cage Assembly AXK2542 25x42x2 mm
The axial needle roller bearing AXK2542 is suitable for high axial loads in the smallest space. It can be combined with a thrust washer. Main dimensions according to DIN 5405-2.
Technical Data
| Inside (mm): | 25 |
| Outside (mm): | 42 |
| Width (mm): | 2 |
| Tolerance for inside (mm): | 0,00004/0,00025 |
| Tolerance for outside (mm): | -0,00038/-0,00013 |
| Tolerance for width (mm): | -0,00001/0 |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0059 kg |
Item number: AXK2542
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 0.80
pcs
Technical Scribble
Technical Data
| Inside (mm): | 25 |
| Outside (mm): | 42 |
| Width (mm): | 2 |
| Tolerance for inside (mm): | 0,00004/0,00025 |
| Tolerance for outside (mm): | -0,00038/-0,00013 |
| Tolerance for width (mm): | -0,00001/0 |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0059 kg |
