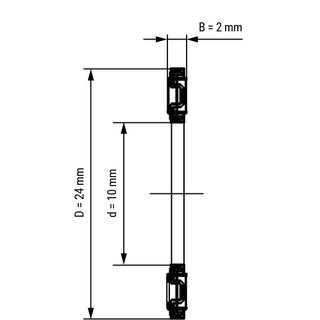

Technical Scribble
Axial Needle Roller and Cage Assembly AXK1024 10x24x2 mm
The axial needle roller bearing AXK1024 is suitable for high axial loads in the smallest space. It can be combined with a thrust washer. Main dimensions according to DIN 5405-2.
Technical Data
| Inside (mm): | 10 |
| Outside (mm): | 24 |
| Width (mm): | 2 |
| Tolerance for inside (mm): | 0,000025/0,000175 |
| Tolerance for outside (mm): | -0,00032/-0,00011 |
| Tolerance for width (mm): | -0,00001/0 |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0026 kg |
Item number: AXK1024
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 0.50
pcs
Technical Scribble
Technical Data
| Inside (mm): | 10 |
| Outside (mm): | 24 |
| Width (mm): | 2 |
| Tolerance for inside (mm): | 0,000025/0,000175 |
| Tolerance for outside (mm): | -0,00032/-0,00011 |
| Tolerance for width (mm): | -0,00001/0 |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0026 kg |
