Technical Scribble

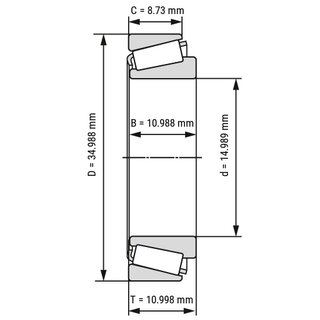

Tapered Roller Bearing A4059 - A4138 14.989x34.988x10.998 mm
The tapered roller bearing A4059 - A4138 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.
Technical Data
| Inside (mm): | 14.989 |
| Outside (mm): | 34.988 |
| Bearing Width (mm): | 10.998 |
| Width Outer Ring (mm): | 8.73 |
| Width Inner Ring (mm): | 10.988 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0520 kg |
Item number: A4059 - A4138
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 6.48
pcs
Technical Scribble
Technical Data
| Inside (mm): | 14.989 |
| Outside (mm): | 34.988 |
| Bearing Width (mm): | 10.998 |
| Width Outer Ring (mm): | 8.73 |
| Width Inner Ring (mm): | 10.988 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0520 kg |
