Technical Scribble

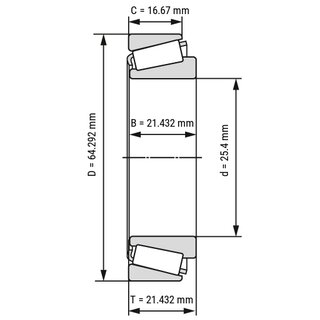

Tapered Roller Bearing 86643 - 86610 25.4x64.292x21.432 mm
The tapered roller bearing 86643 - 86610 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.
Technical Data
| Inside (mm): | 25.4 |
| Outside (mm): | 64.292 |
| Bearing Width (mm): | 21.432 |
| Width Outer Ring (mm): | 16.67 |
| Width Inner Ring (mm): | 21.432 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,3640 kg |
Item number: 86643 - 86610
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 18.42
pcs
Technical Scribble
Technical Data
| Inside (mm): | 25.4 |
| Outside (mm): | 64.292 |
| Bearing Width (mm): | 21.432 |
| Width Outer Ring (mm): | 16.67 |
| Width Inner Ring (mm): | 21.432 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,3640 kg |
