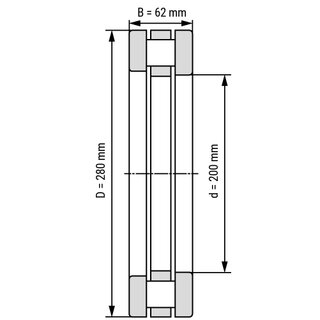

Axial Cylindrical Roller Bearing 81240-M 200x280x62 mm
For forces in the shaft direction. The axial cylindrical roller bearing 81240-M absorbs high loads from an axial direction and can be dismantled. Main dimensions according to DIN 722.
Technical Data
| Inside (mm): | 200 |
| Outside (mm): | 280 |
| Width (mm): | 62 |
| Tolerance for inside (mm): | 0/-0,03 |
| Tolerance for outside (mm): | 0/-0,035 |
| Tolerance for width (mm): | 0/-0,4 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Brass |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 14,2000 kg |
Item number: 81240-M
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 982.00
pcs
