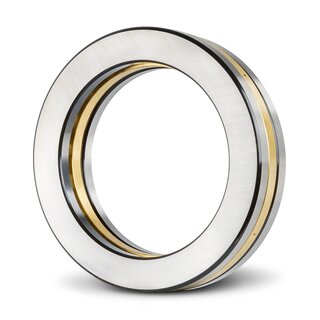

Axial Cylindrical Roller Bearing 81230-M 150x215x50 mm
For forces in the shaft direction. The axial cylindrical roller bearing 81230-M absorbs high loads from an axial direction and can be dismantled. Main dimensions according to DIN 722.
Technical Data
| Inside (mm): | 150 |
| Outside (mm): | 215 |
| Width (mm): | 50 |
| Tolerance for inside (mm): | 0/-0,025 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0/-0,4 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Brass |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 2,1800 kg |
Item number: 81230-M
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 286.62
pcs
Technical Scribble
Technical Data
| Inside (mm): | 150 |
| Outside (mm): | 215 |
| Width (mm): | 50 |
| Tolerance for inside (mm): | 0/-0,025 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0/-0,4 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Brass |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 2,1800 kg |
