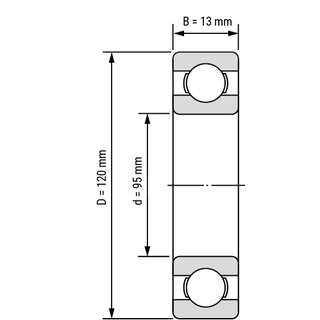

Deep Groove Ball Bearing 6819 open / 61819 open oiled 95x120x13 mm

Very narrow, very light and with extremely good spinning characteristics. The deep groove ball bearing 6819 is very narrow and can also be used with limited space. The low weight allows for extremely high speeds.

Technical Data

Inside (mm):	95
Outside (mm):	120
Width (mm):	13
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,2
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,2790 kg

Item number: 6819-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 27.72

pcs
