Deep Groove Ball Bearing 6816 ZZ / 2Z / 61816 ZZ / 2Z 80x100x10 mm

Very narrow, very light and with extremely good spinning characteristics. The deep groove ball bearing 6816-ZZ / 2Z is very narrow and can also be used with limited space. The low weight allows for extremely high speeds.

Technical Data

Inside (mm):	80
Outside (mm):	100
Width (mm):	10
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,1500 kg

Item number: 6816-ZZ

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 17.17

pcs

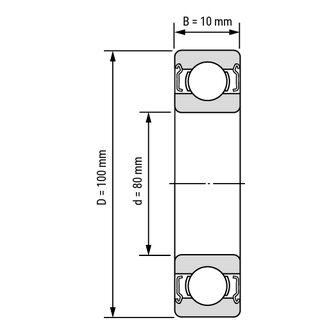

Technical Scribble
