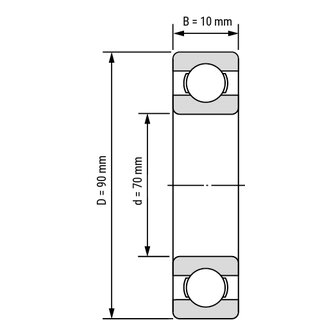

Deep Groove Ball Bearing 6814 open / 61814 open oiled 70x90x10 mm

Very narrow, very light and with extremely good spinning characteristics. The deep groove ball bearing 6814 is very narrow and can also be used with limited space. The low weight allows for extremely high speeds.

Technical Data

Inside (mm):	70
Outside (mm):	90
Width (mm):	10
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,1340 kg

Item number: 6814-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 10.41

pcs

Technical Scribble

Technical Data

Inside (mm):	70
Outside (mm):	90
Width (mm):	10
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,1340 kg

Technical Scribble

Deep Groove Ball Bearing 6814 open / 61814 open oiled 70x90x10 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
