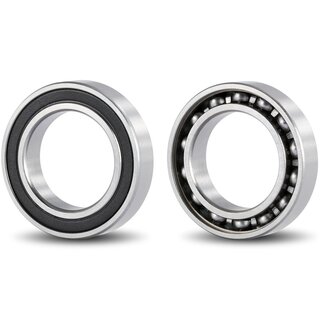

Deep Groove Ball Bearing 6811 RS / 61811 RS 55x72x9 mm

Very narrow, very light and with extremely good spinning characteristics. The deep groove ball bearing 6811-RS is very narrow and can also be used with limited space. The low weight allows for extremely high speeds.

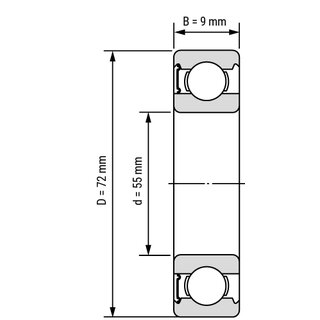

Technical Data

Inside (mm):	55
Outside (mm):	72
Width (mm):	9
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Product weight:	0,0830 kg

Item number: 6811-RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 5.45

pcs
