Deep Groove Ball Bearing 6709 open C3 / 61709 C3 dry 45x55x6 mm

Extremely narrow, extremely light and with utmost good spinning characteristics. The deep groove ball bearing 6709-C3 is extremely narrow and can also be used with limited space. The low weight allows for utmost high speeds.

Technical Data

Inside (mm):	45
Outside (mm):	55
Width (mm):	6
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	C3 (increased clearance)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0240 kg

Item number: 6709-C3-DRY

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 11.66

pcs

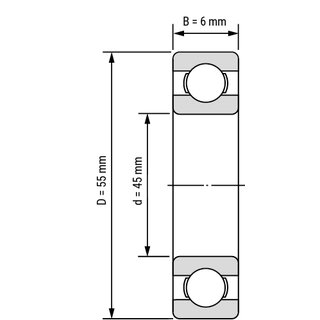

Technical Scribble

Technical Data

Inside (mm):	45
Outside (mm):	55
Width (mm):	6
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	C3 (increased clearance)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0240 kg
