Technical Scribble

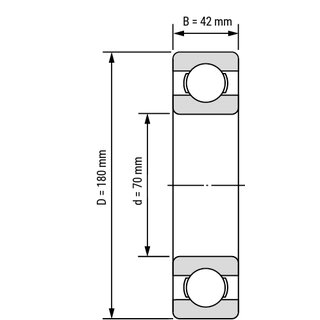

Deep Groove Ball Bearing 6414 open oiled 70x180x42 mm
Massive variant for high radial loads. The deep groove ball bearing 6414 is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications, in particular for high radial loads. Main dimensions according to DIN 625-1.
Technical Data
| Inside (mm): | 70 |
| Outside (mm): | 180 |
| Width (mm): | 42 |
| Tolerance for inside (mm): | 0/-0,015 |
| Tolerance for outside (mm): | 0/-0,025 |
| Tolerance for width (mm): | 0/-0,15 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | no |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Product weight: | 4,8300 kg |
Item number: 6414-OIL
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 57.75
