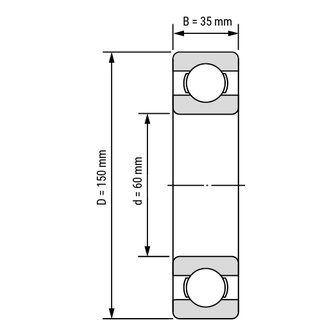

Deep Groove Ball Bearing 6412 open 60x150x35 mm

Massive variant for high radial loads. The deep groove ball bearing 6412 is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications, in particular for high radial loads. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	60
Outside (mm):	150
Width (mm):	35
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Product weight:	2,7700 kg

Item number: 6412

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 37.73

pcs
