Deep Groove Ball Bearing 6403 open oiled 17x62x17 mm

Massive variant for high radial loads. The deep groove ball bearing 6403 is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications, in particular for high radial loads. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	17
Outside (mm):	62
Width (mm):	17
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,2700 kg

Item number: 6403-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.16

pcs

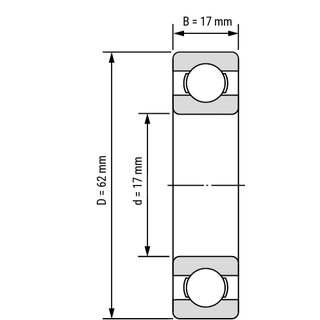

Technical Scribble
