Deep Groove Ball Bearing 63803 ZZ / 2Z 17x26x7 mm

The deep groove ball bearing 63803-ZZ / 2Z is the wider version of the 68 series. It is narrow and can also be used with limited space. The low weight allows for extremely high speeds. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	17
Outside (mm):	26
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0112 kg

Item number: 63803-ZZ

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.23

pcs

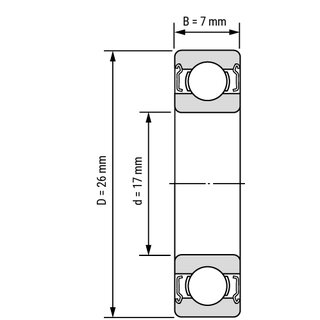

Technical Scribble
