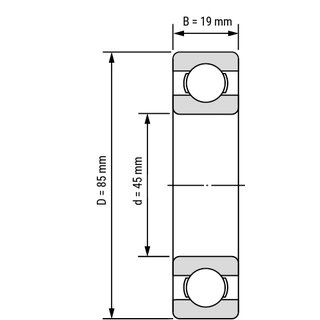

Deep Groove Ball Bearing 6209 open C3 oiled 45x85x19 mm

Stable and with good spinning characteristics. The deep groove ball bearing 6209-C3 is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	45
Outside (mm):	85
Width (mm):	19
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	C3 (increased clearance)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,4100 kg

Item number: 6209-C3-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.98

pcs
