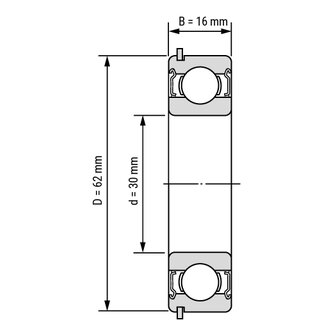

Deep Groove Ball Bearing 6206 NR ZZ / 2Z (Slot+Snap Ring) 30x62x16 mm
Stable and with good spinning characteristics. The deep groove ball bearing 6206-NR-ZZ / 2Z is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications. With the flange, it can be fixed axially, e.g. in bore holes. Main dimensions according to DIN 625-1.
Technical Data
| Inside (mm): | 30 |
| Outside (mm): | 62 |
| Width (mm): | 16 |
| Tolerance for inside (mm): | 0/-0,01 |
| Tolerance for outside (mm): | 0/-0,013 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Seal: | ZZ |
| Internal Clearance: | CN (Standard) |
| Flange: | no |
| Slot & Snap Ring: | yes |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Sealing material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Lifetime lubricated: | yes |
| Product weight: | 0,2000 kg |
Item number: 6206-ZZ-NR
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 5.16
pcs
Technical Scribble
Technical Data
| Inside (mm): | 30 |
| Outside (mm): | 62 |
| Width (mm): | 16 |
| Tolerance for inside (mm): | 0/-0,01 |
| Tolerance for outside (mm): | 0/-0,013 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Seal: | ZZ |
| Internal Clearance: | CN (Standard) |
| Flange: | no |
| Slot & Snap Ring: | yes |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Sealing material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Lifetime lubricated: | yes |
| Product weight: | 0,2000 kg |
