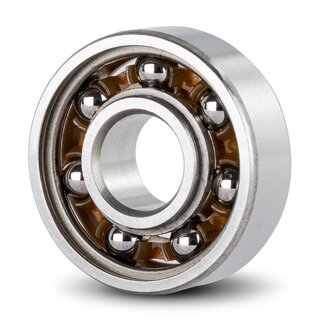

Miniature ball bearings - smooth run 608 open C3 8x22x7 mm (Material: 100Cr6, Nylon cage, not lubricated)

The miniature ball bearing 608-TN-C3-FS is particularly smooth-running, since it is not lubricated and has a higher radial internal clearance (C3). It is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	8
Outside (mm):	22
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	C3 (increased clearance)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0120 kg

Item number: 608-TN-C3-FS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 1.32

pcs
