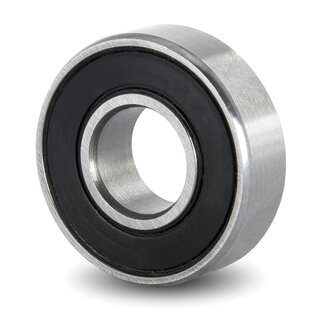

Full Complement Ball Set Bearing 605 V (MAX) 2RS 5x14x5 mm

Small, but robust. The full complement miniature ball bearing 605-V-2RS is, due to the full complement set design, particularly resilient. It is suitable for installation with limited space and on thin shafts. Due to the maximum number of rolling elements, it is marked with the addition MAX (= maximum). Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	5
Outside (mm):	14
Width (mm):	5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Sealing material:	NBR
Full Complement Ball Set:	yes
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0040 kg

Item number: 605-V-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.24

pcs
