Deep Groove Ball Bearing 6019 open oiled 95x145x24 mm

Lightweight, stable and with good spinning characteristics. The deep groove ball bearing 6019 is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	95
Outside (mm):	145
Width (mm):	24
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,2
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	1,2000 kg

Item number: 6019-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 33.70

pcs

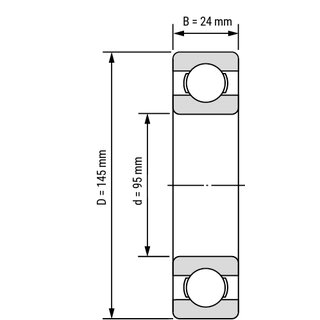

Technical Scribble
