Deep Groove Ball Bearing 6002 NR ZZ / 2Z (Slot+Snap Ring) 15x32x9 mm

Lightweight, stable and with good spinning characteristics. The deep groove ball bearing 6002-NR-ZZ / 2Z is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications. With the flange, it can be fixed axially, e.g. in bore holes. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	15
Outside (mm):	32
Width (mm):	9
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	yes
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0300 kg

Item number: 6002-ZZ-NR

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.88

pcs

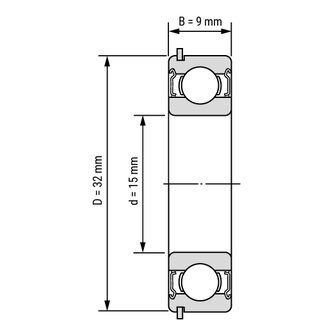

Technical Scribble
