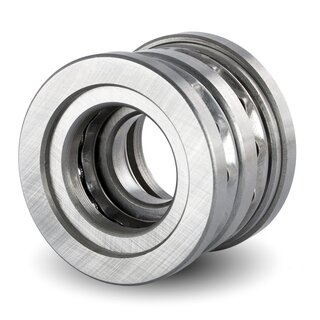

Double Direction Axial Deep Groove Ball Bearing 54210-U 40x82x47 mm

For forces in the shaft direction. The thrust bearing 54210-U absorbs high loads from both axial directions and can be dismantled. It can compensate for low static misalignment. Main dimensions according to DIN 711.

Technical Data

Inside (mm):	40
Outside (mm):	82
Width (mm):	47
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,022
Tolerance for width (mm):	0,02/-0,25
Inside Housing Washer (mm):	62
Rows Of Balls:	double row
Flange:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Outside Shaft Washer (mm):	78
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,8710 kg

Item number: 54210-U

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 53.00

pcs
