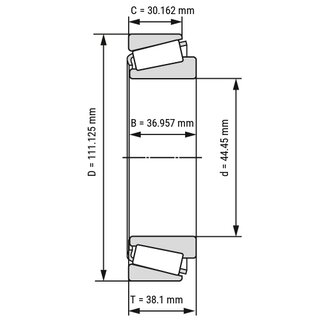

Technical Scribble
Tapered Roller Bearing 535 - 532A 44.45x111.125x38.1 mm
The tapered roller bearing 535 - 532A in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.
Technical Data
| Inside (mm): | 44.45 |
| Outside (mm): | 111.125 |
| Bearing Width (mm): | 38.1 |
| Width Outer Ring (mm): | 30.162 |
| Width Inner Ring (mm): | 36.957 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 1,8400 kg |
Item number: 535 - 532A
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 27.31
pcs
Technical Scribble
Technical Data
| Inside (mm): | 44.45 |
| Outside (mm): | 111.125 |
| Bearing Width (mm): | 38.1 |
| Width Outer Ring (mm): | 30.162 |
| Width Inner Ring (mm): | 36.957 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 1,8400 kg |
