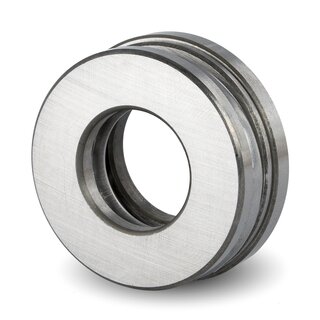

Axial Deep Groove Ball Bearing 53211-U 55x95x30 mm

For forces in the shaft direction. The thrust bearing 53211-U absorbs high loads from an axial direction and can be dismantled. It can compensate for low static misalignments. Main dimensions according to DIN 711.

Technical Data

Inside (mm):	55
Outside (mm):	95
Width (mm):	30
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,022
Tolerance for width (mm):	0,02/-0,3
Inside Housing Washer (mm):	57
Rows Of Balls:	single row
Flange:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Outside Shaft Washer (mm):	57
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,6090 kg

Item number: 53211-U

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 23.88
