Angular Ball Bearing 5306 open TN / 3306 open TN 30x72x30.2 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 5306-TN is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	30
Outside (mm):	72
Width (mm):	30.2
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,5100 kg

Item number: 5306-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 11.55

pcs

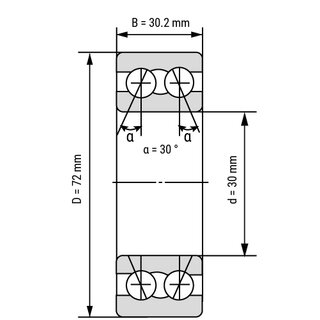

Technical Scribble

Technical Data

Inside (mm):	30
Outside (mm):	72
Width (mm):	30.2
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,5100 kg
