Angular Ball Bearing 5304 ZZ / 2Z TN / 3304 ZZ / 2Z TN 20x52x22.2 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 5304-ZZ / 2Z-TN is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	20
Outside (mm):	52
Width (mm):	22.2
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	ZZ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,2300 kg

Item number: 5304-ZZ-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 9.24

pcs

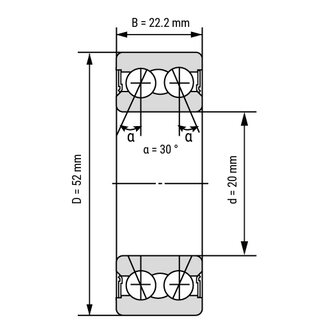

Technical Scribble

Technical Data

Inside (mm):	20
Outside (mm):	52
Width (mm):	22.2
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	ZZ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,2300 kg
