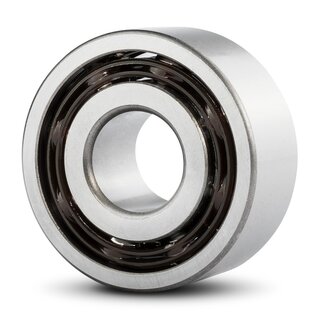

Angular Ball Bearing 5302 open TN / 3302 open TN 15x42x19 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 5302-TN is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	15
Outside (mm):	42
Width (mm):	19
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1320 kg

Item number: 5302-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 7.35

pcs

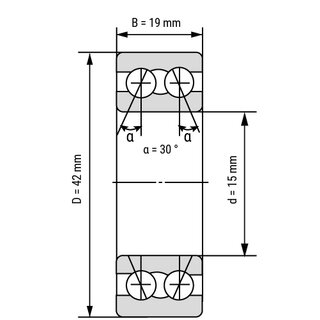

Technical Scribble
