Technical Scribble

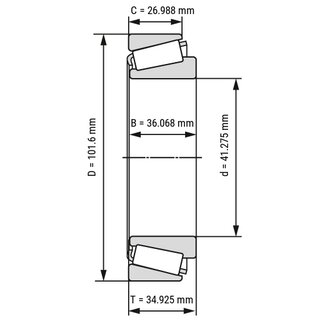

Tapered Roller Bearing 526 - 522 41.275x101.6x34.925 mm
The tapered roller bearing 526 - 522 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.
Technical Data
| Inside (mm): | 41.275 |
| Outside (mm): | 101.6 |
| Bearing Width (mm): | 34.925 |
| Width Outer Ring (mm): | 26.988 |
| Width Inner Ring (mm): | 36.068 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 1,4200 kg |
Item number: 526 - 522
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 33.74
