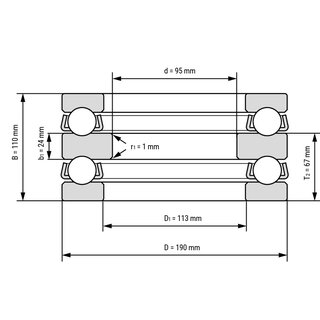

Double Direction Axial Deep Groove Ball Bearing 52322 95x190x110 mm
For forces in the shaft direction. The thrust bearing 52322 absorbs very high loads from both axial directions and can be dismantled. Main dimensions according to DIN 711.
Technical Data
| Inside (mm): | 95 |
| Outside (mm): | 190 |
| Width (mm): | 110 |
| Tolerance for inside (mm): | 0/-0,02 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0,025/-0,3 |
| Inside Housing Washer (mm): | 113 |
| Rows Of Balls: | double row |
| Flange: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Outside Shaft Washer (mm): | 113 |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 14,0000 kg |
Item number: 52322
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 516.43
pcs
Technical Scribble
Technical Data
| Inside (mm): | 95 |
| Outside (mm): | 190 |
| Width (mm): | 110 |
| Tolerance for inside (mm): | 0/-0,02 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0,025/-0,3 |
| Inside Housing Washer (mm): | 113 |
| Rows Of Balls: | double row |
| Flange: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Outside Shaft Washer (mm): | 113 |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 14,0000 kg |
