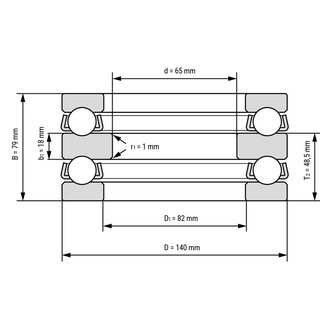

Double Direction Axial Deep Groove Ball Bearing 52316 65x140x79 mm
For forces in the shaft direction. The thrust bearing 52316 absorbs very high loads from both axial directions and can be dismantled. Main dimensions according to DIN 711.
Technical Data
| Inside (mm): | 65 |
| Outside (mm): | 140 |
| Width (mm): | 79 |
| Tolerance for inside (mm): | 0/-0,015 |
| Tolerance for outside (mm): | 0/-0,025 |
| Tolerance for width (mm): | 0,02/-0,3 |
| Inside Housing Washer (mm): | 82 |
| Rows Of Balls: | double row |
| Flange: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Outside Shaft Washer (mm): | 82 |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 4,8200 kg |
Item number: 52316
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 215.50
pcs
