Angular Ball Bearing 5213 open TN / 3213 open TN 65x120x38.1 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 5213-TN is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	65
Outside (mm):	120
Width (mm):	38.1
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Contact Angle:	30
Rows Of Balls:	double row
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,6600 kg

Item number: 5213-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 44.10

pcs

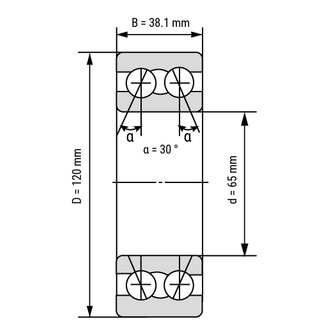

Technical Scribble
