Angular Ball Bearing 5211 open TN / 3211 open TN 55x100x33.3 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 5211-TN is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	55
Outside (mm):	100
Width (mm):	33.3
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Contact Angle:	30
Rows Of Balls:	double row
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,9600 kg

Item number: 5211-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 26.88

pcs

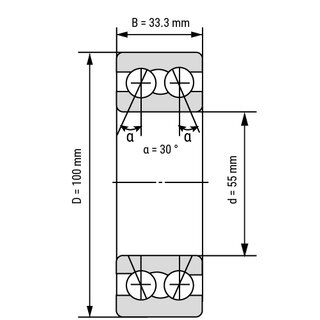

Technical Scribble

Technical Data

Inside (mm):	55
Outside (mm):	100
Width (mm):	33.3
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Contact Angle:	30
Rows Of Balls:	double row
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,9600 kg

Technical Scribble

Angular Ball Bearing 5211 open TN / 3211 open TN 55x100x33.3 mm

Technical Data

Technical Scribble

Technical Data
