Angular Ball Bearing 5206 ZZ / 2Z / 3206 ZZ / 2Z 30x62x23.8 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 5206-ZZ / 2Z is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	30
Outside (mm):	62
Width (mm):	23.8
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	ZZ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,2900 kg

Item number: 5206-ZZ

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 10.71

pcs

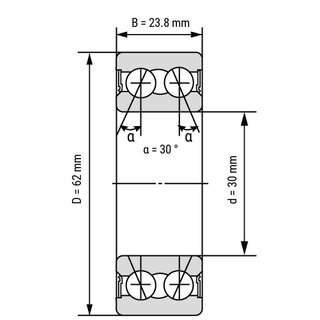

Technical Scribble
