Angular Ball Bearing 5202 ZZ / 2Z TN / 3202 ZZ / 2Z TN 15x35x15.9 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 5202-ZZ / 2Z-TN is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	15
Outside (mm):	35
Width (mm):	15.9
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	ZZ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0720 kg

Item number: 5202-ZZ-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.30

pcs

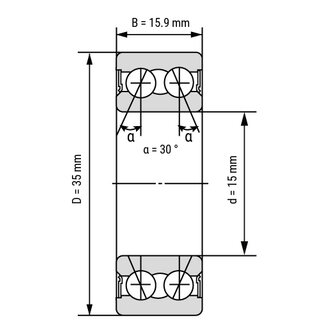

Technical Scribble
