Angular Ball Bearing 5201 2RS TN / 3201 2RS TN 12x32x15.9 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 5201-2RS-TN is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	12
Outside (mm):	32
Width (mm):	15.9
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0630 kg

Item number: 5201-2RS-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 5.88

pcs

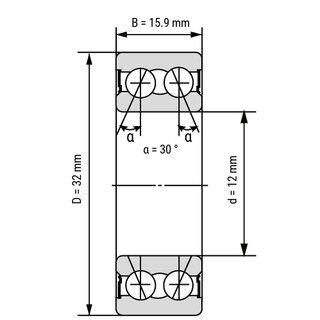

Technical Scribble

Technical Data

Inside (mm):	12
Outside (mm):	32
Width (mm):	15.9
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0630 kg

Technical Scribble

Angular Ball Bearing 5201 2RS TN / 3201 2RS TN 12x32x15.9 mm

Technical Data

Technical Scribble

Technical Data
