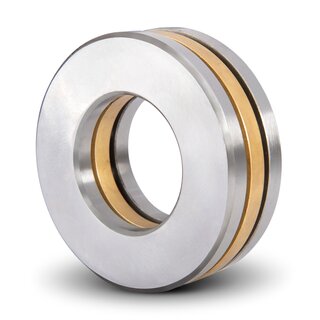

Axial Deep Groove Ball Bearing 51324-M 120x210x70 mm

For forces in the shaft direction. The thrust bearing 51324-M absorbs very high loads from an axial direction and can be dismantled. Main dimensions according to DIN 711.

Technical Data

Inside (mm):	120
Outside (mm):	210
Width (mm):	70
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0,025/-0,3
Inside Housing Washer (mm):	123
Rows Of Balls:	single row
Flange:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Full Complement Ball Set:	no
Outside Shaft Washer (mm):	123
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	10,7000 kg

Item number: 51324-M

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 281.40

pcs
