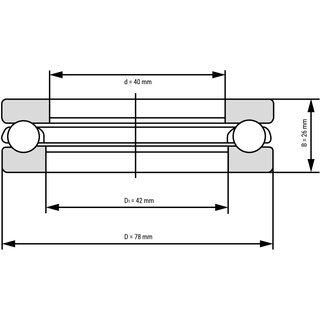

Axial Deep Groove Ball Bearing 51308 40x78x26 mm
For forces in the shaft direction. The thrust bearing 51308 absorbs very high loads from an axial direction and can be dismantled. Main dimensions according to DIN 711.
Technical Data
| Inside (mm): | 40 |
| Outside (mm): | 78 |
| Width (mm): | 26 |
| Tolerance for inside (mm): | 0/-0,012 |
| Tolerance for outside (mm): | 0/-0,019 |
| Tolerance for width (mm): | 0,02/-0,25 |
| Inside Housing Washer (mm): | 42 |
| Rows Of Balls: | single row |
| Flange: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Outside Shaft Washer (mm): | 42 |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,5360 kg |
Item number: 51308
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 8.47
pcs
